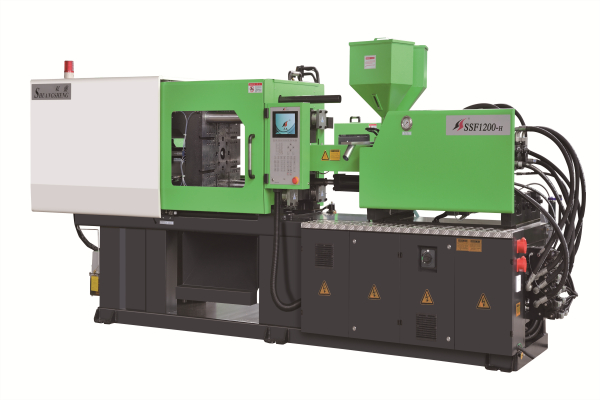

Plastic Flower Injection Molding Machine

Concact Us Now

Description

Reviews

Parameters

Machine Model		SSF920H		SSF1200H		SSF1700H
Injectipn Unit		A Color	B Color	A Color	B Color	A Color	B Color
Screw diameter	mm	32	28	35	30	38	35
Screw L/D ratio	L/D	18.7	21.4	18	21	19.3	21
Shot volume	cm3	108	83	144	106	192	163
Injection weight(PS)	g	99	75	131	96	175	148
	Oz	3.5	2.7	4.6	3.4	6.1	5.2
Plasticizing	g/s	10	8	12.2	10	13	12
Injection rate	g/s	97	75	110	90	115	105
Injection pressure	Mpa	176	229	182	249	176	208
Screw speed	rpm	250	250	250	250	250	250
Clamping Unit
Clamping force	KN	920		1200		1700
Open stroke	mm	330		350		435
Space between tie-bars（WxH）	mm	370X370		410X410		480X480
Max. Mold height	mm	400		450		535
Min. Mold height	mm	150		150		180
Ejector stroke	mm	100		130		145
Ejector force	KN	31		45		53
Ejection number	PC	5		5		5
Mould Align diameter	mm	125		125		125
Others
Max.Pump pressure	Mpa	16		16		16
Servo motor power	KW	13		18.5		18.5
Heater power	KW	9		10		13
Machine dimension(LXWXH)	m	4.2X1.2X1.65		4.8X1.28X1.9		5.13X1.45X2.12
Oiltank capacity	L	150		230		300
Machine Weight	ton	3.8		4		6.5

Application

Double Color Plastic Flower-Customized

Special designed for plastic flower production process, apply double barrel design, of which can plasticize and injection at the same time, mold at one time, greatly reduce cycle time, with good color mixing and stable injection.
